  Berlin Foundry and Machine Co.

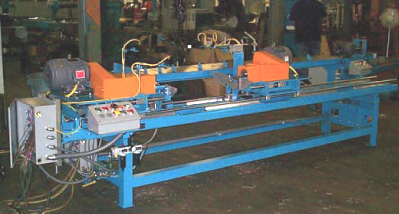

Fully Automatic Double Head Core Beveler




Power: Specify 230/460/575 volts/3 phase/60 hertz

Motors: 2 ea. 3HP, 1800 RPM, 182T Frame, TEFC

Capacity: 3" I.D. Cores: 3/8", 1/2", and .660 wall cores x 96"long.

Bevel: Bevel is at a 30-degree angle.



Fully Automatic Double Head Core Beveler   Fully Automatic Double Head Core Beveler

  Cutters: Replaceable Cartridge Inserts

Features: Machine is Fully automatic, comes complete with core escapement, automatic core length setting and core transfer to remove core from machine. Electrical enclosure is U.L. and C.S.A approved.
