  Berlin Foundry and Machine Co.

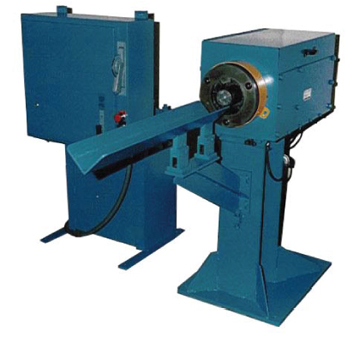

Pedestal Core Squeezer


Pedestal Core Squeezer Power: Specify 230/460/575 volts/3 phase/60 Hertz

Motor: 10 HP, 1800 RPM, 215T Frame, TEFC

Hydraulics: Power unit with manifold and cartridge valves (6.7 GPM)


Pedestal Core Squeezer Pedestal Core Squeezer

  Capacity: 3 1/16in. ID x 4 3/8in. ID x 4in. OD cores

Optional Equipment: Tooling for 3 1/16in. ID x 4in. OD cores

Method of Operation: Notched core is inserted full depth to activate machine. The operator then rotates it slightly for a second squeeze.
